- APD 氣動密封件-NOK 密封件 小提示：CTRL+F 可直接查到規格
訂購致電:0755-28545652 手機:13602589346

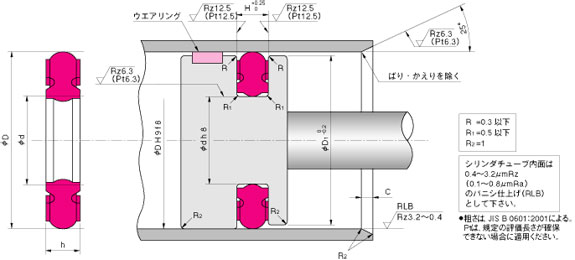

| 密封件公稱尺寸 |
腔體尺寸 |
NOK零件號 |
| D |
d |
h |
φD |
φd |
φD1 |
H |
C |
| 10 |
5.4 |
1.7 |
10 |
5.4 |
9.7 |
1.8 |
1.0 |
CQ0154A1 |
| 12 |
7.4 |
1.7 |
12 |
7.4 |
11.7 |
1.8 |
1.0 |
CQ0124A3 |
| 15 |
10.4 |
1.7 |
15 |
10.4 |
14.7 |
1.8 |
1.0 |
CQ0155A1 |
| 16 |
11.4 |
1.7 |
16 |
11.4 |
15.7 |
1.8 |
1.0 |
CQ0156A1 |
| 20 |
14.0 |
2.2 |
20 |
14.0 |
19.5 |
2.4 |
1.5 |
CQ0151A2 |
| 25 |
17.0 |
3 |
25 |
17.0 |
24.5 |
3.2 |
2.0 |
CQ0150A2 |
| 30 |
22.0 |
3 |
30 |
22.0 |
29.5 |
3.2 |
2.0 |
CQ0157A1 |
| 32 |
24.0 |
3 |
32 |
24.0 |
31.5 |
3.2 |
2.0 |
CQ0148A2 |
| 38 |
30.0 |
3 |
38 |
30.0 |
37.5 |
3.2 |
2.0 |
CQ0158A1 |
| 40 |
32.0 |
3 |
40 |
32.0 |
39.5 |
3.2 |
2.0 |
CQ0149A2 |
| 44 |
36.0 |
3 |
44 |
36.0 |
43.5 |
3.2 |
2.0 |
CQ0159A1 |
| 50 |
40.0 |
3.8 |
50 |
40.0 |
49.5 |
4.0 |
2.5 |
CQ0160A2 |
| 56 |
46.0 |
3.8 |
56 |
46.0 |
55.5 |
4.0 |
2.5 |
CQ0161A1 |
| 60 |
50.0 |
3.8 |
60 |
50.0 |
59.5 |
4.0 |
2.5 |
CQ0162A1 |
| 63 |
53.0 |
3.8 |
63 |
53.0 |
62.4 |
4.0 |
2.5 |
CQ0163A2 |
| 70 |
55.0 |
5.7 |
70 |
55.0 |
69.4 |
6.0 |
3.0 |
CQ0164A1 |
| 75 |
60.0 |
5.7 |
75 |
60.0 |
74.4 |
6.0 |
3.0 |
CQ0165A1 |
| 80 |
65.0 |
5.7 |
80 |
65.0 |
79.4 |
6.0 |
3.0 |
CQ0166A2 |
| 85 |
70.0 |
5.7 |
85 |
70.0 |
84.4 |
6.0 |
3.0 |
CQ0167A1 |
| 90 |
75.0 |
5.7 |
90 |
75.0 |
89.4 |
6.0 |
3.0 |
CQ0168A1 |
| 95 |
80.0 |
5.7 |
95 |
80.0 |
94.4 |
6.0 |
3.0 |
CQ0169A1 |
| 100 |
85.0 |
5.7 |
100 |
85.0 |
99.4 |
6.0 |
3.0 |
CQ0170A2 |
| 110 |
95.0 |
5.7 |
110 |
95.0 |
109.3 |
6.0 |
3.0 |
CQ0171A1 |
| 115 |
100.0 |
5.7 |
115 |
100.0 |
114.3 |
6.0 |
3.0 |
CQ0172A1 |
| 120 |
105.0 |
5.7 |
120 |
105.0 |
119.3 |
6.0 |
3.5 |
CQ0173A1 |
| 125 |
110.0 |
5.7 |
125 |
110.0 |
124.3 |
6.0 |
3.5 |
CQ0174A2 |
| 130 |
115.0 |
5.7 |
130 |
115.0 |
129.3 |
6.0 |
3.5 |
CQ0175A1 |
| 140 |
125.0 |
5.7 |
140 |
125.0 |
139.3 |
6.0 |
3.5 |
CQ0176A1 |
| 150 |
135.0 |
5.7 |
150 |
135.0 |
149.3 |
6.0 |
3.5 |
CQ0177A1 |
| 160 |
140.0 |
7.7 |
160 |
140.0 |
159.3 |
8.0 |
5.0 |
CQ0178A2 |
| 175 |
155.0 |
7.7 |
175 |
155.0 |
174.3 |
8.0 |
5.0 |
CQ0179A1 |
| 180 |
160.0 |
7.7 |
180 |
160.0 |
179.3 |
8.0 |
5.0 |
CQ0180A1 |
| 200 |
180.0 |
7.7 |
200 |
180.0 |
199.0 |
8.0 |
5.0 |
CQ0181A2 |
| 250 |
230.0 |
7.7 |
250 |
230.0 |
249.0 |
8.0 |
5.0 |
CQ0182A1 |
| 300 |
280.0 |
7.7 |
300 |
280.0 |
299.0 |
8.0 |
5.0 |
CQ0183A1 |
|
